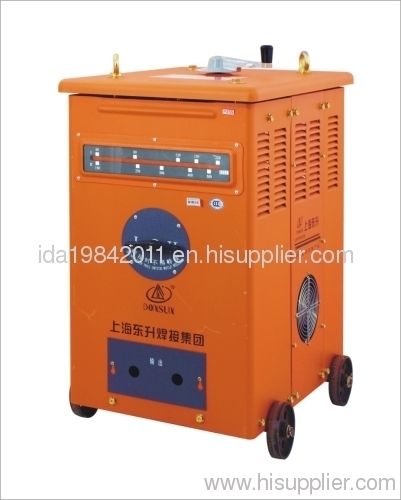

MOVING CORE TYPE AC SMAW/MMA ARC - (BX3-500)
| Payment Terms: | T/T,WU |
| Place of Origin: | Shanghai, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
*Single phase moving core type and forced air cooling structure;
*Suitable for welding ferrous metal workpieces with general AC electrode;
| Model | BX3-500 |
| Input power voltage(V),HZ) | 1- 380V/50 |
| Rated Input Capacity(KVA) | 36.1 |
| Rated Duty Cycle(%) | 60% |
| Open Circuit Voltage(V) | 65~79 |
| Rated Output Current(A) | 500 |
| Rated Load Voltage(V) | 40 |
| Insulation Class | F |
| Current Adjust Range(A) | 65-225/185-500 |
| Suitable Electrode Diameter(mm) | 2.5-8 |
| Weight(kg) | 170 |
| Dimension(mm) | 670x512x851 |
